Product Details
Place of Origin: Hebei, China
Brand Name: Zhufeng
Certification: ISO9001, CE, CCC, RoHS
Model Number: ZR-KVVP
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: $0.27 - $3.99/meters
Packaging Details: Packed in wooden case on pallet or according to your requirements for power cable
Supply Ability: 30000 Kilometer/Kilometers per Month
Application: |
Overhead, Underground, Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
PVC |
Material Shape: |
Round Wire |
Rated Voltage: |
450/750V |
Specification: |
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² |
Core Number: |
7-61/4-61/4-14/4-10 |
Standard: |
GB/T9330-2008 |
Application: |
Overhead, Underground, Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
PVC |
Material Shape: |
Round Wire |
Rated Voltage: |
450/750V |
Specification: |
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² |
Core Number: |
7-61/4-61/4-14/4-10 |
Standard: |
GB/T9330-2008 |
Type | Designation | Main Application |
KVV | Copper conductor PVC Insulated and sheathed control cable. | For laying indoors, in trenches and in duals, for fixed installation. |
KVVP2 | Copper conductor PVC Insulated and sheathed control cable with copper tape shield. | For laying indoors, in trenches and in duals, for fixed installation. |
KVV22 | Copper conductor PVC Insulated and sheathed control cable with steel tape armoured. | For laying indoors, in trenches and in duals, and in groud, able to withstandheavier mechanics lorce, and for fixed installation. |
KVVRP KVVR | Copper conductor PVC Insulated flexible control cable. | For laying indoors, movable and flexible. |
ZR-KVV | Copper conductor PVC Insulated and sheathed flame retardant control cable. | For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants. |
ZR-KVVP2 | Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tags shield. | For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants. |
ZR-KVV22 | Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tape armoured. | For laying indoors, in trenches and in duals and underground, the cable should be flame retardants and able to bear beavier extermal mechanical lorce,and for fixed installation. |
ZR-KVVRP ZR-KVVR | Copper conductor PVC Insulated and sheathed flame retardant flexible control cable. | For laying indoors, and the cable should be flame retardant flexible and movable. |

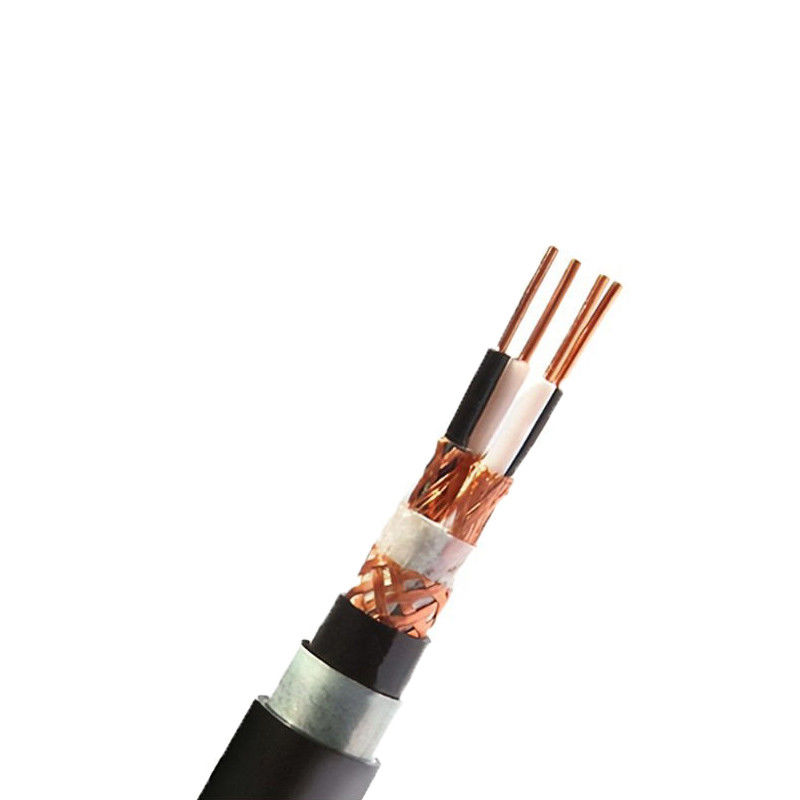

product name | Copper conductor PVC insulated and sheathed flame retardant control cable | model number | ZR-KVVP |
specification | 0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² | core number | 7-61/4-61/4-14/4-10 |
standard | GB/T9330-2008 | application | Suitable for control, monitoring loop and protection line, etc |
conductor material | Copper | color | black or custom |
insulation | PVC | jacket | PVC |
rated voltage | 450/750V | armour | / |
