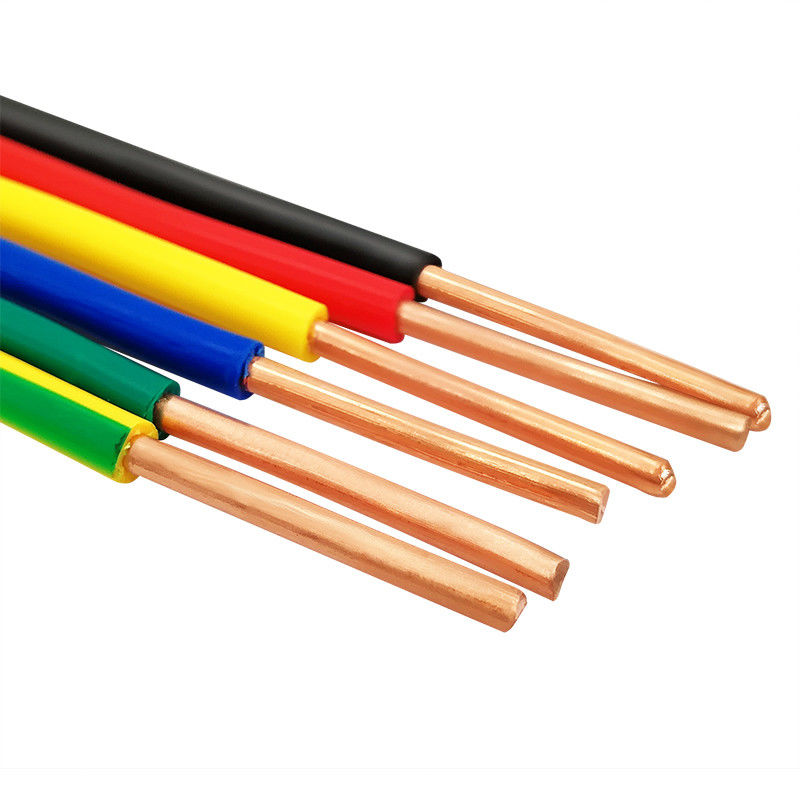

Low Smoke and Halogen-free Xlpe Insulated Flame Retardant Fireproof Copper Cables Wires

Name: Low Smoke and Halogen-free Xlpe Insulated Flame Retardant Fireproof Copper Cables Wires
Brand: ZHUFENG
SKU: WDZN-BYJ
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (175 reviews)

Product Details

Place of Origin: Hebei, China

Brand Name: ZHUFENG

Model Number: WDZN-BYJ

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $0.11 - $0.36/meters

Packaging Details: Packed in wooden case on pallet or according to your requirements for power cable

Supply Ability: 30000 Kilometer/Kilometers per Month

Get Best Price

Product Details

Product Description

Highlight:

Insulation Material:	Xlpe	Type:	LOW VOLTAGE
Application:	Industrial	Conductor Material:	Copper
Certificate:	ISO/CCC/CE/RoHS	Voltage:	450/750V
Size:	1.5/2.5/4/6/10MM....	Color:	Customer's Requirment
Package:	Steel-wooden Drum	Sample:	Provided

Insulation Material:	Xlpe
Type:	LOW VOLTAGE
Application:	Industrial
Conductor Material:	Copper
Certificate:	ISO/CCC/CE/RoHS
Voltage:	450/750V
Size:	1.5/2.5/4/6/10MM....
Color:	Customer's Requirment
Package:	Steel-wooden Drum
Sample:	Provided

Low Smoke and Halogen-free Xlpe Insulated Flame Retardant Fireproof Copper Cables Wires

Product Description

WDZ-BYJ cable wire characteristics

WDZ-BYJ wire uses a new generation of flame retardant crosslinked low smoke halogen-free polyolefin insulation, has a very good flame retardant, low smoke, low toxic performance, to overcome the traditional halogen-free polymer combustion produced a lot of smoke to suffocate people and corrosion of equipment defects, represents the development trend of today's wire and cable.

LSZH ( Low smoke halogen-free ) flame retardant wire's performance is mainly manifested in if the fire occurs, the spread speed is slow, the toxic smoke concentration is low, the visual field visibility is high, the harmful gas release amount is small, easy to evacuate the disaster site personnel.

LSZH cable combustion gas corrosion is very small, so as to avoid damage to equipment. Low smoke halogen-free wire has a strong and improved uv resistance and aging, thus extending the service life of the cable.

LSZH cable in combustion: halogen acid gas release ≤100mg/g,z light transmittance is 60%;

LSZH cable when burning: PH value ≥4.3, conductivity ≤10μS/mm, z light transmittance 60%.

What's the difference between BV and BYJ?

BV wire is PVC insulated, BYJ wire is xLPE insulated. BYJ -- Copper conductor XLPE insulated fixed laying wire, temperature class 90℃; BV -- Copper conductor for fixed laying with PVC insulation, temperature class 70℃.

Specification

Product name	Copper conductor Xlpe insulated electrical wire	Insulation	XIPE
Model	BYJ	Temperature	90°C
Rated voltage	450/750V	Standard	Q/301223KLA55-2015
Specification	1.5/2.5/4/6mm²	Application	Suitable for rated voltage 450/750V and below, halogen-free, low smoke, flame retardant, safety and environmental protection requirements of the place.
Core number	single core	Conductor	high quality Oxygen-free copper
