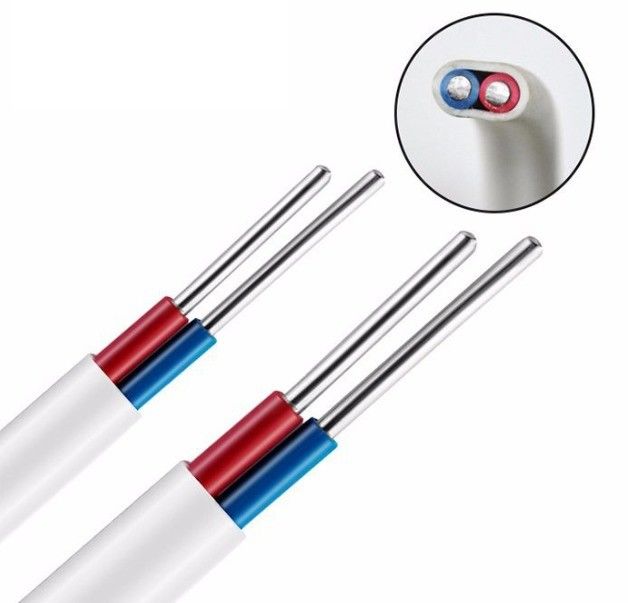

Flame Retardant Construction Aluminum Conductor PVC Flat Cable for Building Home

Name: Flame Retardant Construction Aluminum Conductor PVC Flat Cable for Building Home
Brand: Zhufeng
SKU: BLVVB
Price: 1.23 USD
Availability: InStock
Rating: 4.7 (129 reviews)

Product Details

Place of Origin: Hebei, China

Brand Name: Zhufeng

Certification: ISO, CCC, CE, RoHS

Model Number: BLVVB

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: $1.23/meters 1000-4999 meters

Get Best Price

Product Details

Product Description

Highlight:

Insulation Material:	PVC	Type:	LOW VOLTAGE
Application:	Building/Home	Conductor Material:	Aluminum
Jacket:	PVC	Rated Voltage:	300/500V
Specification:	2.5-10mm²	Number Of Cores:	2/3 Cores
Standard:	JB8734.2	Transport Package:	Wooden Drum

Insulation Material:	PVC
Type:	LOW VOLTAGE
Application:	Building/Home
Conductor Material:	Aluminum
Jacket:	PVC
Rated Voltage:	300/500V
Specification:	2.5-10mm²
Number Of Cores:	2/3 Cores
Standard:	JB8734.2
Transport Package:	Wooden Drum

Flame Retardant Construction Aluminum Conductor PVC Flat Cable for Building Home

Product Description

BLVVB cable wire characteristics

PVC insulated wire is not only simple in structure and convenient in use, but also has good electrical insulation, physical and mechanical properties, non-flammability, compression resistance, chemical resistance, impact resistance and moisture resistance. The laying temperature of the wire is not less than 0℃, and the maximum working temperature is allowed for a long time (70℃). The current transmission capacity is large.

BLVVB wires produced by Zhufeng Cable Daming Co., Ltd also have the following advantages:

1. Good Insulation:
PVC keeps the original good insulation characteristics of PE, and the insulation resistance is further increased. The tangent of the dielectric loss Angle is very small and is not affected by temperature.

2. No Delay Combustibility:
PVC has a good flame retardant type, its flame retardant value of more than 40, so it is widely used in fire protection applications.

3. Better Mechanical Properties:
Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of PVC have been improved, so as to make up for the shortcomings of PE vulnerable to environmental stress and cracking.

4. Chemical Resistance:
PVC has strong acid and alkali resistance and oil resistance (resistance to concentrated hydrochloric acid, concentration of 90% sulfuric acid, concentration of 60% nitric acid, and concentration of 20% sodium hydroxide).

Specification

Product name	Flat aluminum core PVC insulated and sheathed power cable	Insulation	PVC
Model	BLVVB	Rated voltage	300/500V
Standard	JB8734.2	Sheath	PVC
Specification	2.5-10mm²	Conductor	Aluminum
