Product Details
Place of Origin: Hebei, China
Brand Name: Zhufeng
Certification: ISO9001, CE, CCC, RoHS, VDE
Model Number: ZR-KVVP
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: $3.21 - $12.30/meters
Application: |
Overhead, Underground, Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
PVC |
Material Shape: |
Round Wire |
Rated Voltage: |
450/750V |
Specification: |
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² |
Core Number: |
7-61/4-61/4-14/4-10 |
Standard: |
GB/T9330-2008 |
Application: |
Overhead, Underground, Industrial |
Conductor Material: |
Copper |
Jacket: |
PVC |
Insulation Material: |
PVC |
Material Shape: |
Round Wire |
Rated Voltage: |
450/750V |
Specification: |
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm² |
Core Number: |
7-61/4-61/4-14/4-10 |
Standard: |
GB/T9330-2008 |
|
Type
|
Designation
|
Main Application
|
|
KVV
|
Copper conductor PVC Insulated and sheathed control cable.
|
For laying indoors, in trenches and in duals, for fixed installation.
|
|
KVVP2
|
Copper conductor PVC Insulated and sheathed control cable with copper tape shield.
|
For laying indoors, in trenches and in duals, for fixed installation.
|
|
KVV22
|
Copper conductor PVC Insulated and sheathed control cable with steel tape armoured.
|
For laying indoors, in trenches and in duals, and in groud, able to withstandheavier mechanics lorce, and for fixed installation.
|
|
KVVRP
KVVR
|
Copper conductor PVC Insulated flexible control cable.
|
For laying indoors, movable and flexible.
|
|
ZR-KVV
|
Copper conductor PVC Insulated and sheathed flame retardant control cable.
|
For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants.
|
|
ZR-KVVP2
|
Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tags shield.
|
For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants.
|
|
ZR-KVV22
|
Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tape armoured.
|
For laying indoors, in trenches and in duals and underground, the cable should be flame retardants and able to bear beavier extermal mechanical lorce,and for fixed installation.
|
|
ZR-KVVRP
ZR-KVVR
|
Copper conductor PVC Insulated and sheathed flame retardant flexible control cable.
|
For laying indoors, and the cable should be flame retardant flexible and movable.
|
|
product name
|

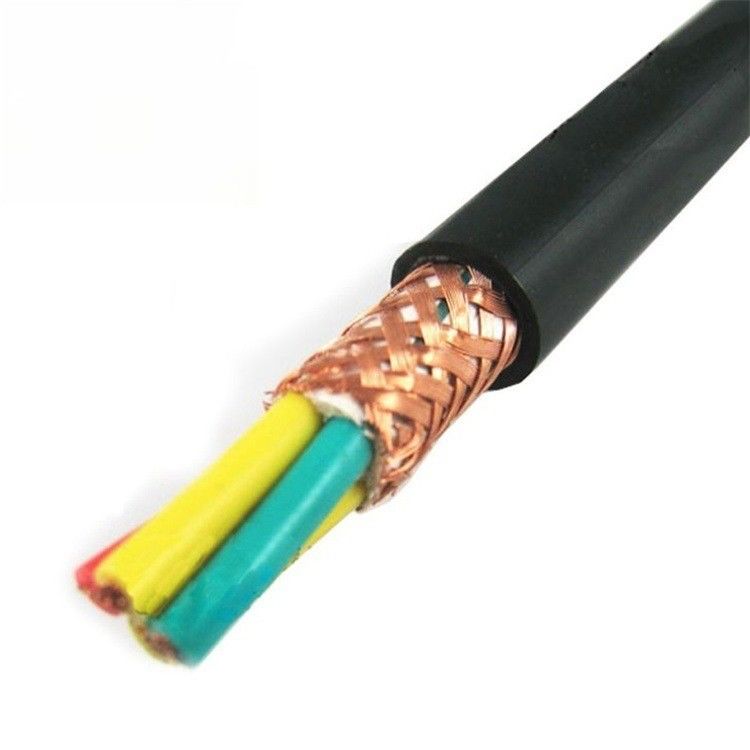

Copper conductor PVC insulated and sheathed flame retardant control cable
|
model number
|
ZR-KVVP
|
|
specification
|
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm²
|
core number
|
7-61/4-61/4-14/4-10
|
|
standard
|
GB/T9330-2008
|
application
|
Suitable for control, monitoring loop and protection line, etc
|
|
conductor material
|
Copper
|
color
|
black or custom
|
|
insulation
|
PVC
|
jacket
|
PVC
|
|
rated voltage
|
450/750V
|
armour
|
/
|
