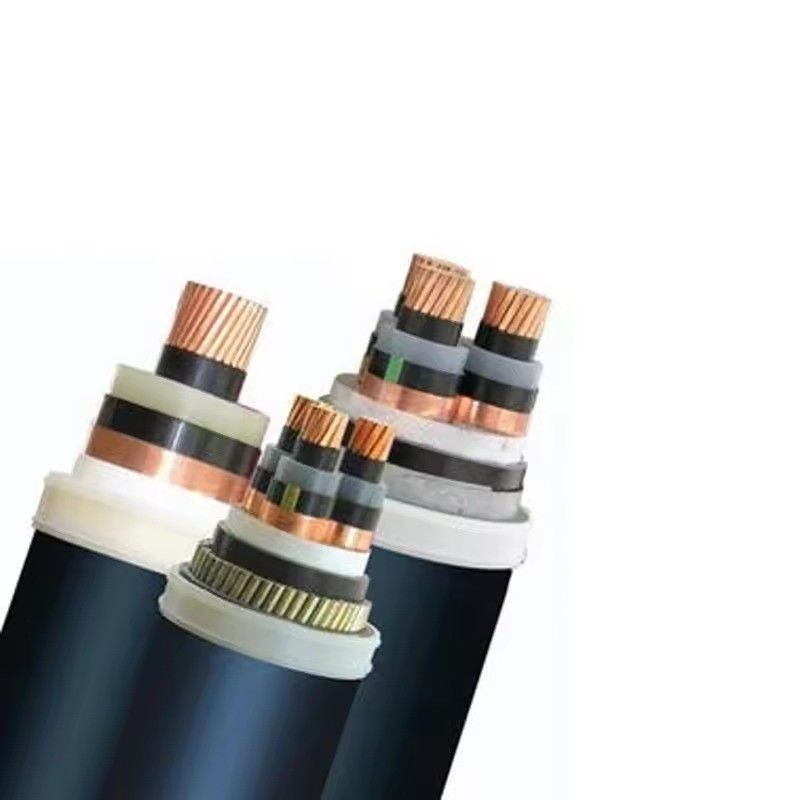

Electric Cable XLPE Insulated Copper Aluminum Conductor Power Cables Wires 35mm

Name: Electric Cable XLPE Insulated Copper Aluminum Conductor Power Cables Wires 35mm
Brand: ZHUFENG
SKU: YJV
Price: 3.66 USD
Availability: InStock
Rating: 4.5 (121 reviews)

Product Details

Place of Origin: Hebei, China

Brand Name: ZHUFENG

Model Number: YJV

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $3.66/meters >=500 meters

Get Best Price

Product Details

Product Description

Highlight:

Insulation Material:	Xlpe	Type:	LOW VOLTAGE
Application:	Construction, For Laying Indoor Or Outdoor Construction, Electrical Appliance	Conductor Material:	Copper
Jacket:	PVC	Product Name:	Copper Conductor XLPE Insulated PVC Sheathed Power Cable
Specification:	1.5-500mm²	Core Number:	3-5
Rated Voltage:	0.6/1kv	Standard:	GB/T12706.2-2008/IEC60502-2:2005
Certificate:	ISO,CCC,CE,RoHS

Insulation Material:	Xlpe
Type:	LOW VOLTAGE
Application:	Construction, For Laying Indoor Or Outdoor Construction, Electrical Appliance
Conductor Material:	Copper
Jacket:	PVC
Product Name:	Copper Conductor XLPE Insulated PVC Sheathed Power Cable
Specification:	1.5-500mm²
Core Number:	3-5
Rated Voltage:	0.6/1kv
Standard:	GB/T12706.2-2008/IEC60502-2:2005
Certificate:	ISO,CCC,CE,RoHS

Electric Cable XLPE Insulated Copper Aluminum Conductor Power Cables Wires 35mm

Product Description

XLPE insulated power cables are superior in the rmomechanical properties.electrical characteristics and chemical resistances.They are not only simple in construction and light in weight but also no limitation is required to the difference of level in installation along the route.This kind of up-to-date cables is widely used in electrical power nets in cities,mines and factories.

The insulation of the cable-XLPE is manufactured by adopting a chemical or physical process of cross-linking of the molecular structure.During the process,the cross linkable insulation is transformed from its linear chainstructure intc a three- dimensional network structure owing to this substantive transformation,the thermomechanical prooertiesofthe cable insulation are greatly improved while its superior electrical characteristics remain unchanged.
The maximum permissible continuous conductor operating temperature of XLPE insulated power cables is 90℃, which is higher than that of paper,PVC,or PE insulated cables.The current ratings of the XLPE insulated cable further increase.
To meet the broad users needs.our company has successfully developed up-to-date flame-retardant type. Low smoke low halogen type.low smoke non-halogen type and watertight type XLPE insulated power cables.Cables of flame-retardant type.low smoke low halogen type,low smoke non-halogen type are suited for USB where emphasis is placed on special performance of flame retardancy, such as high-rise buildings,hospitals,tunnels,power plants,petrochemical works,mines,etc.;while the cables of watertight type are used in the places where waterproof is strictly requires.
The above products,having been tested,are in conformity with the requirements of the standards of GB/T12706.2-2008,GB/T18380-2008,GB/T17650-1998.GB/T17651 1998,IEC60502- 2:2005,IEC60332-2000,IEC61034-1997 and IEC60754-1994.

Specification

Product name	Copper conductor XLPE insulated PVC sheathed power cable	Insulation	XLPE
Model	YJV	Temperature	90°C
Rated voltage	0.6/1kv	Standard	GB/T12706.2-2008/IEC60502-2:2005
Specification	1.5-500mm²	Sheath	PVC
Core number	3-5	Application	For laying indoor or outdoor construction, electrical , unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
Conductor	copper	Armour	STA (optional)
