Product Details
Place of Origin: Hebei, China
Brand Name: Zhufeng
Model Number: ZR-YJV-8.7/15KV
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: $16.59/meters 500-2999 meters
Insulation Material: |
Xlpe |
Type: |
Medium Voltage |
Application: |
Underground, Medium-voltage Electric Power Transmission |
Conductor Material: |
Copper/Aluminum |
Jacket: |
PVC |
Specification: |
25-500mm² |
Core Number: |
1/3 |
Rated Voltage: |
8.7/10KV,8.7/15KV |
Standard: |
GB/T 12706.1-2020 |
Certificate: |
ISO,CCC,CE,RoHS |
Insulation Material: |
Xlpe |
Type: |
Medium Voltage |
Application: |
Underground, Medium-voltage Electric Power Transmission |
Conductor Material: |
Copper/Aluminum |
Jacket: |
PVC |
Specification: |
25-500mm² |
Core Number: |
1/3 |
Rated Voltage: |
8.7/10KV,8.7/15KV |
Standard: |
GB/T 12706.1-2020 |
Certificate: |
ISO,CCC,CE,RoHS |
|
Type
|
|
Name
|
Main Application
|
|
|
Cu Core
|
Al Core
|
|
|
|
|
YJV
YJY
|
YJLV
YJLY
|
XLPE insulated, PVC or PE Sheathed Power Cable
|
For laying indoor and outdoor, unable to bear extenal mechanical force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible.
|
|
|
YJV22
YJV23
|
YJLV22
YJLV23
|
XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable
|
For laying underground, able to bear external mechanical force, but unable to bear large pulling force.
|
|
|
YJV32
YJV33
|
YJLV32
YJLV33
|
XLPE Insulated, Steel Wire Armored, PVC or PE Sheathed Power Cable
|
For laying underground along route with different level, able to bear external mechanical force and moderate pulling force.
|
|
|
YJV42
YJV43
|
YJLV42
YJLV43
|
XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable
|
|
|
|

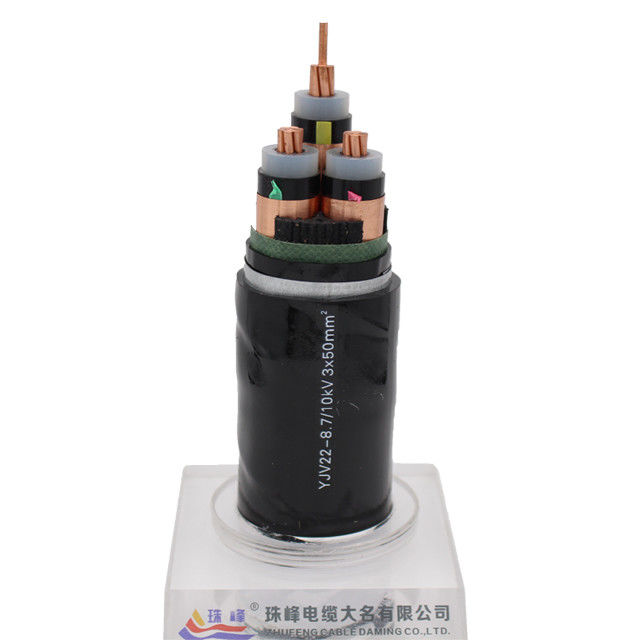

Product name
|
Copper conductor XLPE insulated PVC sheathed power cable
|
Insulation
|
XLPE
|
|
Model
|
YJV22
|
Temperature
|
90°C
|
|
Rated voltage
|
8.7/10KV, 8.7/15KV
|
Standard
|
GB/T12706.2-2008/IEC60502-2:2005
|
|
Specification
|
25-800mm²
|
Sheath
|
PVC
|
|
Core number
|
1/3 core
|
Application
|
For laying indoor and outdoor, unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
|
|
Conductor
|
Copper
|
Armour
|
STA (optional)
|
