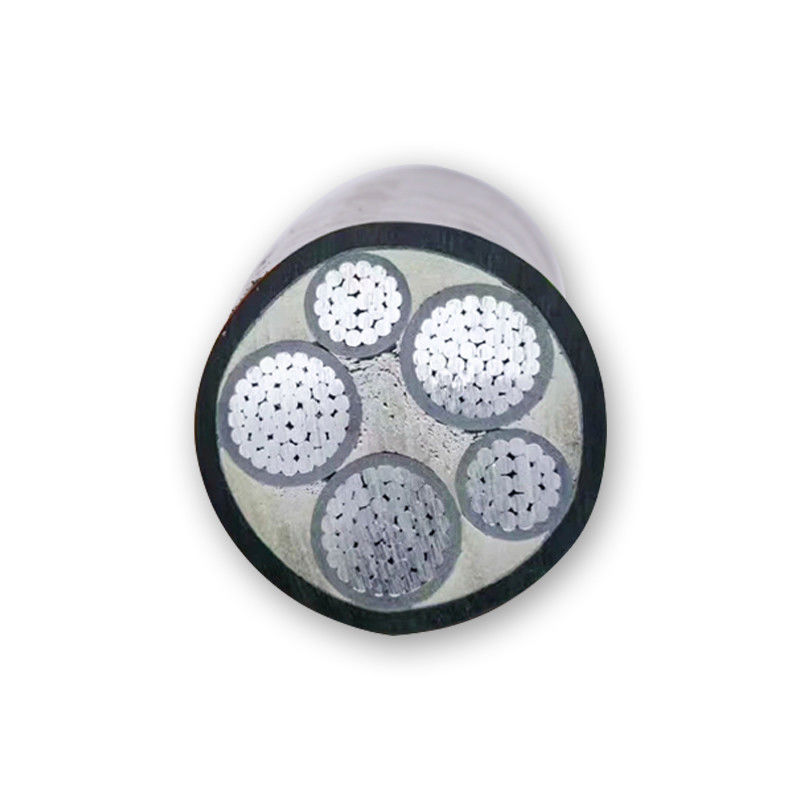

Underground 0.6/1KV 5x16mm2 5x25mm2 5x120mm2 XLPE Insulated Copper/Aluminum Power Cable

Name: Underground 0.6/1KV 5x16mm2 5x25mm2 5x120mm2 XLPE Insulated Copper/Aluminum Power Cable
Brand: Zhufeng
SKU: YJLV
Price: 2.38 USD
Availability: InStock
Rating: 4.7 (132 reviews)

Product Details

Place of Origin: Hebei, China

Brand Name: Zhufeng

Certification: ISO,CCC,CE,RoHS

Model Number: YJLV

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: $2.38/meters 500-4999 meters

Get Best Price

Product Details

Product Description

Highlight:

Insulation Material:	Xlpe	Type:	LOW VOLTAGE
Application:	Construction,Underground	Conductor Material:	Aluminum
Jacket:	PVC	Material Shape:	Round Wire
Rated Voltage:	0.6/1KV	Number Of Cores:	1/2/3/4/5/2+1/3+1/4+1/3+2
Specification:	1.5mm2~500mm2	Temperature:	90°C
Transport Package:	Wooden Drum

Insulation Material:	Xlpe
Type:	LOW VOLTAGE
Application:	Construction,Underground
Conductor Material:	Aluminum
Jacket:	PVC
Material Shape:	Round Wire
Rated Voltage:	0.6/1KV
Number Of Cores:	1/2/3/4/5/2+1/3+1/4+1/3+2
Specification:	1.5mm2~500mm2
Temperature:	90°C
Transport Package:	Wooden Drum

Underground 0.6/1KV 5x16mm2 5x25mm2 5x120mm2 XLPE Insulated Copper/Aluminum Power Cable

Product Description

Insulation layer made of high quality environmental protection polyvinyl chloride, high strength, wear resistance, corrosion resistance, not easy deformation, good flame retardant performance

oxygen-free aluminum core, soft, resistant to bending, no heat, low resistance, excellent electrical conductivity

XLPE power cable specification

Rated voltage: 0.6/1KV 8.7/10KV 8.7/15KV 26/35KV Core number:1/3/3+1/3+2/4/4+1/4+2/5core Conductor cross-sectional area: 25mm²,35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm².

Features: Xlpe insulated power cable not only has excellent electrical properties, mechanical properties, heat aging resistance, environmental stress resistance and chemical corrosion resistance, but also has the advantages of simple structure, easy to use, not limited by laying drop, long-term working temperature, large transmission capacity and so on.

1. When the cable is in normal operation, the maximum conductor temperature is 70℃ for PVC insulation and 90℃ for CROSSlinked polyethylene insulation. 2. short circuit (the longest duration is not more than 5 seconds) the highest temperature of conductor: PVC insulation -- conductor section ≤300mm2 for 160℃, conductor section > 300mm2 for 140℃; Crosslinked PVC insulation at 250℃. 3. When laying cables, the ambient temperature should not be less than 0℃, and the minimum allowable bending radius is as follows: Single core cable: unarmored 20D, armored 15D Multi-core cable: 15D for unarmored, 12D for armored D- actual outer diameter of cable. 4. cable breaking force: aluminum cable: 40×S (N) copper cable: 70×S (N) Note: S is the total cross-sectional area of the conductor. The XLPE insulated power cables produced by ZHUFENG Cable Factory also have the following advantages: 1.Heat resistance XLPE with mesh structure has excellent heat resistance. Will not decompose and carbonize below 200℃, long-term working temperature up to 90℃, thermal life up to 40 years.

2. Insulation performance XLPE keeps the original good insulation characteristics of PE, and the insulation resistance is further increased. The tangent of the dielectric loss Angle is very small and is not affected by temperature.

3. Mechanical properties Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE are improved, which makes up for the disadvantage of PE being vulnerable to environmental stress and cracking.

4. Chemical resistance XLPE has strong acid and alkali resistance and oil resistance, and its combustion products are mainly water and carbon dioxide, which do little harm to the environment and meet the requirements of modern fire safety. Using range The product is suitable for fixed granary circuits with rated AC voltage up to and including 35KV, the maximum long-term operating temperature of the conductor is 90 degrees Celsius, and the maximum short-circuit temperature is not more than 250 degrees Celsius (5S). Such as electric power, construction, mining, metallurgy, petroleum, chemical, transportation and other departments.

Specification

Product name	Aluminum conductor XLPE insulated PVC sheathed power cable	Insulation	XLPE
Model	YJLV	Temperature	90°C
Rated voltage	0.6/1kv 8.7/10KV 8.7/15KV 26/35KV	Standard	GB/T12706.2-2008/IEC60502-2:2005
Specification	16-630mm²	Sheath	PVC
Core number	1/3/3+1/3+2/4/4+1/5	Application	For laying indoor or outdoor construction, electrical , unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
Conductor	Aluminum	Armour	STA SWA(optional)
