Product Details
Place of Origin: Hebei, China
Brand Name: Zhufeng
Certification: ISO9001, CE, CCC, RoHS
Model Number: YJV22
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: $3.13/meters >=500 meters
Insulation Material: |
PVC |
Type: |
LOW VOLTAGE, High Voltage |
Application: |
Underground, Overhead, Heating, Underground |
Conductor Material: |
Copper |
Jacket: |
PVC |
Voltage: |
0.6/1KV,8.7/10KV,26/35KV |
Range Of Application:: |
Refractory |
Color: |
Black Or Customized |
Insulation Material: |
PVC |
Type: |
LOW VOLTAGE, High Voltage |
Application: |
Underground, Overhead, Heating, Underground |
Conductor Material: |
Copper |
Jacket: |
PVC |
Voltage: |
0.6/1KV,8.7/10KV,26/35KV |
Range Of Application:: |
Refractory |
Color: |
Black Or Customized |
Type | Name | Main Application | ||
Cu Core | Al Core | |||
YJV YJY | YJLV YJLY | XLPE insulated, PVC or PE Sheathed Power Cable | For laying indoor and outdoor, unable to bear extenal mechanical force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible. | |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable | For laying underground, able to bear external mechanical force, but unable to bear large pulling force. | |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated, Steel Wire Armored, PVC or PE Sheathed Power Cable | For laying underground along route with different level, able to bear external mechanical force and moderate pulling force. | |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable | ||

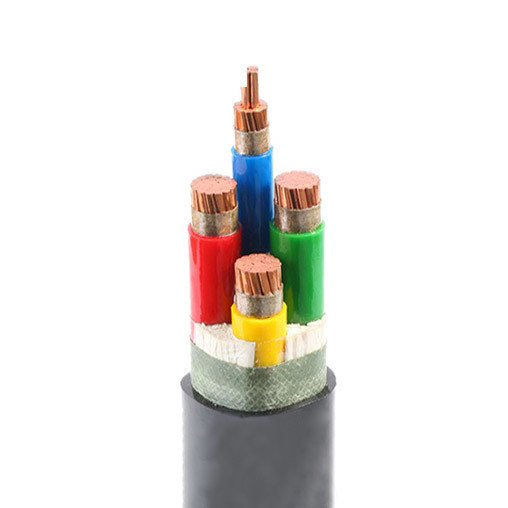

Product name | Copper conductor XLPE insulated PVC sheathed power cable | Insulation | XLPE |
Model | YJV | Temperature | 90°C |
Rated voltage | 0.6/1kv | Standard | GB/T12706.2-2008/IEC60502-2:2005 |
Specification | 1.5-500mm² | Sheath | PVC |
Core number | 3/4/5 | Application | For laying indoor and outdoor, unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble. |
Conductor | Copper | Armour | STA (optional) |
